White color and high strength Fiberglass (0,+45,-45 degree) Triaxial fabric used for composite

Ask Lasest Price
Brand Name :	STR
Model Number :	FG-WR-010
Certification :	SGS Test report(ETAG004),Test report
Price :	from USD1/kg FOB Ningbo to USD2/kg FOB Ningbo
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	one 40ft container per two days
Delivery Time :	about 10 days

Add to Cart

Product Details
Company Profile

White color and high strength Fiberglass (0,+45,-45 degree) Triaxial fabric used for composite

White color high strength Fiberglass (0,+45,-45 degree) Triaxial fabric used for composite

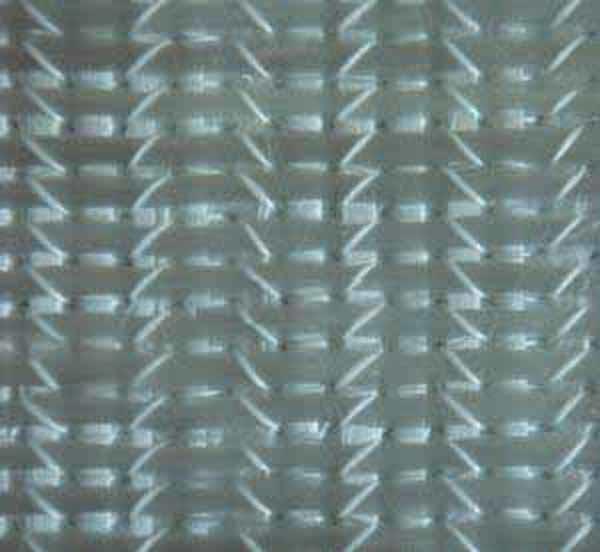

It is stitched-bonded composite reinforcement combining continuous roving oriented in the 0°,+45°,-45° direction into single fabric. It can be with mat or without mat. It is ideal for applications such as wind blades, marine panel, snowboards, truck and trailer panel,,,

Property:

No any binder, good compatible with multi-resin;
Provide high strength in certain direction;
Easy workability and low cost;

Typical Type:

Items	Total Weight (G/M2)	0° Roving density(G/M2)	+45° Roving density(G/M2)	90° Roving Density(G/M2)	-45° Roving density(G/M2)	Chop Density(G/M2)	Polyester Yarn Density(G/M2)
STR-TF800	811.8	394	200.4	11	200.4	/	6
STR-TF1200	1176.1	567	300.6	1.91	300.6	/	6
STR-TF1180	1168.6	661.4	250.6	1.91	250.6	/	6
STR-TF800	810.3	1.91	200.4	401.6	200.4	/	6
STR-TF1050	1055.9	1.91	217	614	217	/	6
STR-TF1200A	1214.6	1.91	400.8	405.1	400.8	/	6
STR-TF1200	1358.8	1.91	300.6	640	300.6	/	6

Remarks:

Standard width: 127cm, Min.width 5cm

Standard roll weight: 50kg~55kg

Packing:

Each roll is wound on paper tube(3” Dia) with plastic film and packed in individual carboard box.

12 or 16 cartons for one pallet.

Specifications

Core diameter	2 inches or 3 inches
Weight/m3	800g~1400g
Width:	1040mm or some other width
Weight/roll:	28kgs or some other weight
Color:	white color

Feature

Certificate:	TDS, Test report, SGS, ISO9001, ETAG004
Place of Origin:	Made-In-China

Packing

1.	Each roll will be packed into one plastic bag. Some rolls will be packed into carton without pallet. At last load into the container.
2.	Each roll will be packed into one plastic bag. Some rolls will be packed into carton and pallet. At last load into the container.

Business information:

Loading port:	Ningbo or Shanghai Port, China
Payment items:	TT, DP, L/C, Paypal
H.S. Code:	70195900
Leading time:	15 days/40ft container
MOQ:	20000m2
Samples:	If A4 size piece sample, it is free; if big samples, it is not free

How to produce

How to pack
